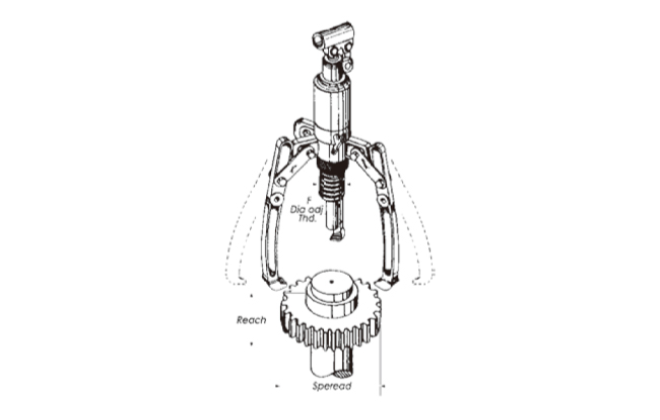

型号 | 拉拔能力 | 拉拔深度 | 拉拔外径 | 行程 | 重量 |
ton | （mm） | （mm） | （mm） | kg | |
HP-6SD | 4 | 152 | 30-150 | 55 | 4.5 |
HP-6in | 6 | 165 | 30-200 | 82 | 5.5 |
HP-6inL | 210 | 6.3 | |||
HP-6inB | 165/210 | 7.6 | |||
HP-8in | 8 | 190 | 30-250 | 82 | 7.2 |
HP-8inL | 255 | 8.1 | |||
HP-8inB | 190/255 | 10.1 | |||
HP-10in | 15 | 235 | 30-280 | 82 | 9.3 |
HP-10inL | 300 | 12.9 | |||
HP-10inB | 235/300 | 15.7 | |||
HP-6in Extra | 10 | 195 | 30-280 | 55 | 6.7 |
HP-6inL Extra | 220 | 7.6 | |||
HP-6inB Extra | 195/220 | 9.4 | |||
HP-8in Extra | 12 | 250 | 50-305 | 82 | 9.3 |
HP-8inL Extra | 290 | 10.6 | |||
HP-8inB Extra | 250/290 | 13.4 | |||
HP-11in | 20 | 270 | 50-360 | 82 | 23.7 |
HP-11inL | 300 | 28.2 | |||
HP-11inB | 270/300 | 46.3 | |||
HP-12in | 25 | 330 | 50-410 | 110 | 35.6 |
HP-12inL | 410 | 37.8 | |||
HP-12inB | 330/410 | 46.3 | |||
HP-15in | 30 | 410 | 50-540 | 110 | 50 |

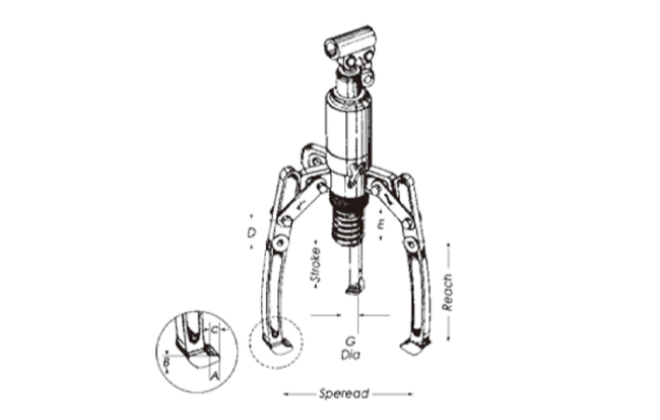

型号 | 爪勾规格（mm） | ||||||
A | B | C | D | E | F | G | |
HP-6SD | 11 | 6 | 22 | 32 | 53 | 42 | 22 |
HP-6in | 11 | 6 | 22 | 32 | 83 | 42 | 22 |
HP-6inL | 11 | 10 | 25 | 51 | |||
HP-6inB | 11 | ||||||
HP-8in | 11 | 25 | 83 | 50 | 22 | ||
HP-8inL | 14 | 10 | 29 | 51 | |||
HP-8inB | 11 | ||||||
HP-10in | 11 | 10 | 29 | 51 | 83 | 60 | 28 |
HP-10inL | 31 | 28 | 33 | 75 | |||
HP-10inB | |||||||
HP-6in Extra | 11 | 6 | 22 | 32 | 113 | 42 | 25 |
HP-6inL Extra | 11 | 10 | 25 | 51 | |||
HP-6inB Extra | |||||||
HP-8in Extra | 11 | 10 | 25 | 51 | 113 | 50 | 28 |
HP-8inL Extra | 14 | 10 | 29 | 51 | |||
HP-8inB Extra | |||||||
HP-11in | 14 | 10 | 29 | 51 | 113 | 60 | 35 |
HP-11inL | 30 | 28 | 33 | 75 | |||
HP-11inB | |||||||
HP-12in | 30 | 28 | 33 | 75 | 140 | 70 | 45 |
HP-12inL | 27 | 26 | 38 | 78 | |||
HP-12inB | |||||||
HP-15in | 27 | 36 | 38 | 78 | 170 | 74 | 55 |
