BW止回扳手

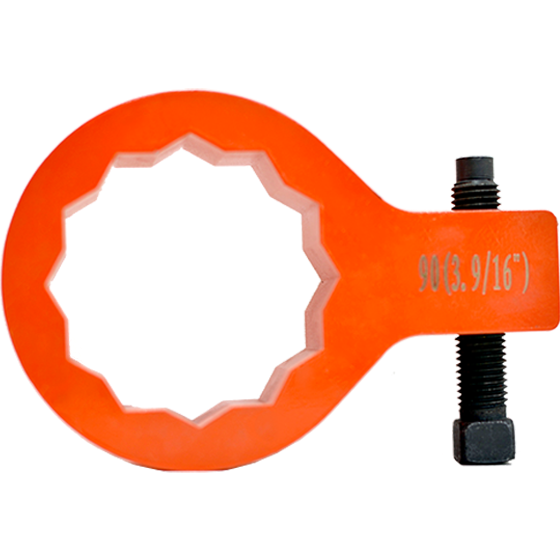

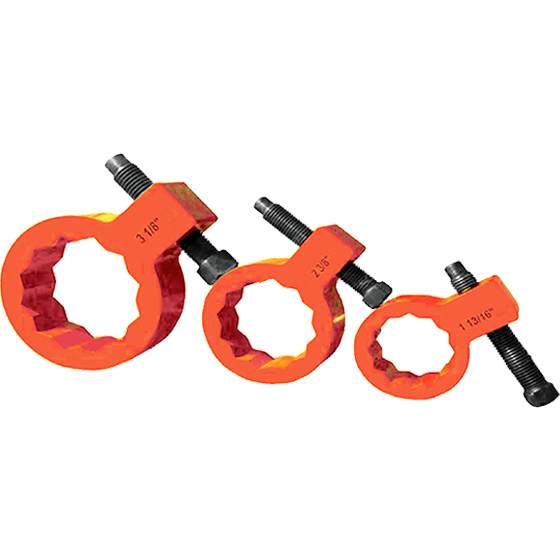

BW系列磁性止回扳手，可以有效防止螺母反方向旋转，易于操作。
联系我们
技术参数
型号 | 螺母对边 | 螺母对边 | 最大载荷 | 最大载荷 |
mm | in | Ft.lbs | Nm | |
BW104 | 30 | 1-3/16" | 2400 | 3254 |
BW107 | 36 | 1-7/16" | 2500 | 3390 |
BW110 | 41 | 1-5/8" | 3500 | 4745 |
BW113 | 46 | 1-13/16" | 3500 | 4745 |
BW200 | 50 | 2" | 4100 | 5559 |
BW203 | 55 | 2-3/16" | 4200 | 5694 |
BW204 | 57 | 2-1/4" | 4300 | 5830 |
BW206 | 60 | 2-3/8" | 4300 | 5830 |
BW209 | 65 | 2- /16" | 4500 | 6169 |
BW212 | 70 | 2-3/4" | 5600 | 7592 |
BW215 | 75 | 2-15/16" | 6300 | 8542 |
BW302 | 80 | 3-1/8" | 7000 | 9491 |
BW308 | 85 | 3-3/8" | 7200 | 9762 |
BW311 | 90 | 3-9/16" | 7300 | 9897 |
BW314 | 95 | 3-3/4" | 9000 | 12202 |
BW400 | 100 | 3-15/16" | 24000 | 32539 |
BW402 | 105 | 4-1/8" | 24000 | 32539 |
BW404 | 110 | 4-5/16" | 24000 | 32539 |
BW408 | 115 | 4-1/2" | 25000 | 33895 |
BW410 | 120 | 4-3/4" | 27000 | 36607 |
BW500 | 130 | 5-1/8" | 27000 | 36607 |
BW506 | 135 | 5-5/16" | 27000 | 36607 |
BW512 | 145 | 5-11/16" | 28000 | 37962 |
