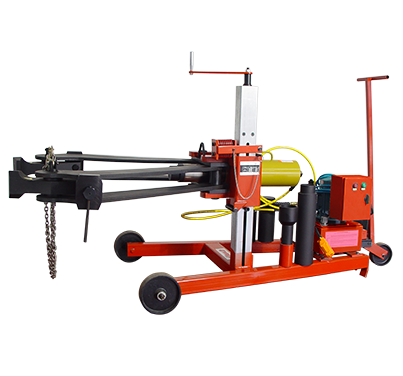

LA Series Vehicle Hydraulic Puller

WREN's LA25100 Hydraulic Herculean Puller is made from High Strength Alloy Steel. Two acting hydraulic design controlled by remote hand switch. This puller is used for  dismounting bearings, couplings, spindle sleeves and other large sized parts.

CONTACT US

Product characteristics

Made of alloy steel with super-high strength; double-acting hydraulic design. Used for dismantling large shafts and perforating work pieces.

Operation manual

Click download

Specifications

Download parameter table

Product selection form


LA Series Selection Table

Type LA25100 LA2560
Capacity(T) 100 60
Min open(mm) 381 140
Pulling depth of min open(mm) 1066 790
Max open(mm) 1219 1000
Depth of max open(mm) 863 850
Overall length(mm) 3015 2885

Regulation of puller

center height(mm)

380~915 380·815
Cylinder stroke (mm) 250 250
Source of power(single phase 220V/380V 220V/380V
L(mm) 3015 2885
H(mm) 1276 1276
W(mm) 930 930


technical data

Two jaws design easy to operate.

With safety lock unit.

Roller cart makes it available to change workplace.
