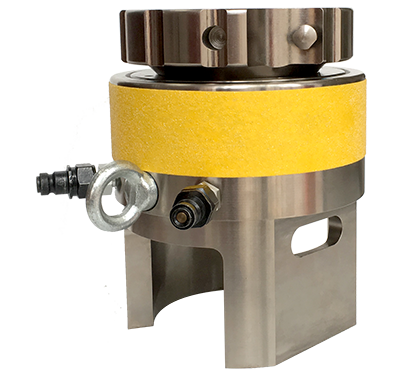

WST Series Quick Reaction Subsea Bolt Tensioner

WST Series Quick Reaction Subsea Bolt Tensioner

Max tool pressure - 21,750psi

‘D’ includes an allowance for tool removal after bolt tightening with 30mm tool stroke

Product development is constantly taking place and dimensions may change without notice

CONTACT US

Product characteristics

Our Subsea bolt tensioner incorporating the quick reaction nut feature reduces diver fatigue, improving diver safety and productivity.
Piston stroke - 1.18inc h (Except WST1 - 0.79inch)

Operation manual

Click download

Specifications

Download parameter table

Product selection form

WST Series Selection Chart

Type S Load

Hydraulic

Area

A

in/mm

B

in/mm

C

in/mm

Minimum Boil

Height

D

in/mm

Stroke

in/mm

Imp Metric in² mm²
in mm
WST1

3/4"

7/8"

M20

M22

141 1.96 943 2.60/66 3.82/97 1.89/48

4.09

3.98

107

105

8.98/228 0.79/20
WST2

1"

1-1/8"

M24

M27

M30

237 2.45 1585 3.23/82 5.02/127.5 2.36/60

5.24

5.12

139

136

134

11.65/296 1.82/30
WST3

1-1/4"

1-3/8"

M33

M36

379 3.92 2532 3.82/97 5.39/137 3.03/77

5.35

5.24

142

139

12.17/309 1.82/30
WST4

1-1/2"

1-5/8"

M39

M42

551 5.69 3676 4.37/111 5.75/146 3.54/90

5.51

5.35

147

144

12.58/322 1.82/30
WST5

1-3/4"

1-7/8"

2"

M45

M48

M52

880 9.10 5868 5.35/136 6.22/158 4.49/114

5.94

5.83

5.71

160

158

154

13.46/342 1.82/30
WST6

2-1/4"

2-1/2"

2-3/4"

M56

M60

M64

M68

M70

1564 16.17 10433 6.97/177 7.11/180.5 5.51/140

6.54

6.30

6.08

178

175

172

169

165

14.72/374 1.82/30
WST7

3"

3-1/4"

3-1/2"

M76

M80

M85

M90

2419 26.63 16128 8.54/217 7.95/202 7.09/180

7.13

6.89

6.65

195

192

188

184

15.10/409 1.82/30
