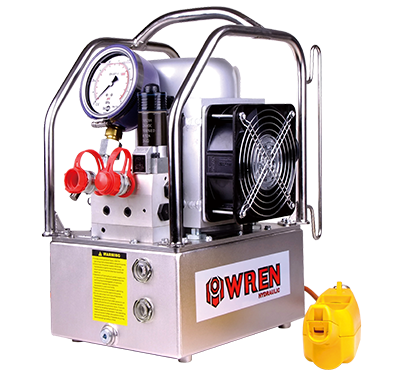

KLW4100 Series Torque Wrench Pump (Automatic Electrical Pump)

KLW4100 Series Torque Wrench Pump (Automatic Electrical Pump)

KLW4100 Series Automatic Electrical Pump shared a same desigh with KLW4000 series standard Electrical  Pump , it just was added a set of control  system (import from germany)on the basic of KLW4000 standard Pump , it inherited all the characteristics of KLW4000 , some other characteristics  of this Pump are as below.


CONTACT US

Product characteristics

Simple
High Efficiency
Manual/Automatic

Operation manual

Click download

Specifications

Download parameter table

Product selection form


Type KLW4100-2 KLW4100-4
Working pressure 70 MPa 70 MPa
Drive Electric Electric
Source of powor 220V / 50Hz 220V / 50Hz
Power 1.1 KW 1.1 KW
Tank capacity 8 L 8 L
Flow rate 7-1.6-0.8 L/min 7-1.6-0.8 L/min
Oil cooler Yes Yes
Weight 25 Kg 27 Kg
Oil outputs 4×1/4" NPT 8×1/4" NPT

technical data

- Operate with one button , the operator just pressed down the button once time to achieve the task of tightening and loosing.

- Compare with the general pump , KLW4100 automatic pump has compact operation process to reduce some needless action and increase approximate 50% of

 working efficiency.

- Besides of the automatic operation , the pump also has the function of manual operation , for some special operation , KLW4100 also can be worked well.

Additionally the KLW4100 can work 24 hours without stop with radiator , WREN also can make the pump with other kinds of motors according customers' requirement.
