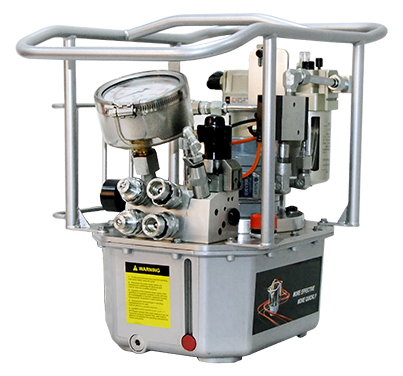

4VN Series Pneumatic Pump

4VN Series Pneumatic Pump

4VN for special pump, hydraulic wrench assembly integrated way: by the oil pump, control valve, fuel tanks, pneumatic motor, cooler, such as instrument of a kind of independent complete hydraulic device, has small volume, light weight, simple structure, operating the French version, all kinds of high pressure, etc. Pump for high, bottom pressure oil pump simultaneously supply, can obtain the larger output oil quantity. When high pressure, the offset pump is automatically empty back to oil by unloading overflow valve and can reduce the power consumption, and (A) the oil pressure can be adjusted by 70~ 700bar.

CONTACT US

Product characteristics

Variable pressure adjustment between 1000~10000 psi
Designed for continuous operation

Operation manual

Click download

Specifications

Download parameter table

Product selection form


Type 4VN-2 4VN-4
Working pressure 70 MPa 70 MPa
Drive Air Air
Air pressure ≥3.4 m³/min ≥3.4 m³/min
Power 4.0 HP 4.0 HP
Tank capacity 5.5 L 5.5 L
Flow rate 10-2.2-1.1 L/min 10-2.2-1.1 L/min
Oil cooler Yes Yes
Weight 19 Kg 21 Kg
Pil outputs 4×1/4" NPT 8×1/4" NPT

Air in

4~8 bar 4~8 bar
L×W×H (mm) 442×282×377 460×282×377

technical data


-  Compact there-stage pump

-  The Single valve block can be replaced by component FP-4,thereby allowing 2 or 4 tools to be driven simultaneously

- Three stage with air drive

- Supporting continuous operation with steel frame

- 100mm diameter gauge ,aluminium oil tank with oil level indicator

- Variable pressure adjustment between 1000~10000 psi

- Designed for continuous operation
