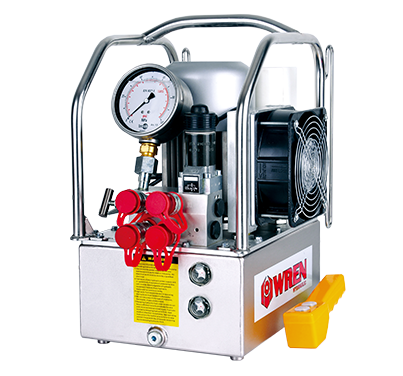

KLW4000 Series Hydraulic Torque Wrench Pump

KLW4000 Series Hydraulic Torque Wrench Pump

KLW4000 for special pump, hydraulic wrench assembly adopts integrated way, by the control unit, power unit, electrical devices such as an independent complete hydraulic device, composed of A large flow, large volume, light weight, simple structure, convenient operation, high working pressure, etc, and export (A) high pressure oil pressure can be adjusted between 70 ~ 70 bar.

CONTACT US

Product characteristics

- Aluminum frame for easy carrying and protecting the elements
- Pressure adjustor , pressure relief valve (inside the tank)
- Pressure relier button , it can relesse the pressure in system in the case of pump stopped

Operation manual

Click download

Specifications

Download parameter table

Product selection form


Mode KLW4000-2 KLW4000-4
Working pressure 70 MPa 70 MPa
Drive Electric Electric
Voltage 220V / 50Hz

220V / 50Hz

Power 1.1 KW 1.1 KW
Tank capacity 8 L 8 L
Flow rate 7-1.6-0.8 L/min 7-1.6-0.8 L/min
Oil cooler Yes Yes
Weight 26.5 Kg 28 Kg
Oil outputs 4×1/4" NPT 8×1/4" NPT
L×W×H(mm) 407×307×458 462×307×458




technical data

- Compact automatic three stage flow,most efficiency.

- Applicable on both one or two wrenches simultaneously.

- Aluminum oil tank with oil gauge and thermometer.

- Have Φ100 high pressure gauge.

- Working pressure40~700 bar.

- With efficient radiator,the pump can work 24 hours continuously.

- The motor can be changed according to the different voltage.

- You can use manifold to operate 4 wrenches simultaneously.
