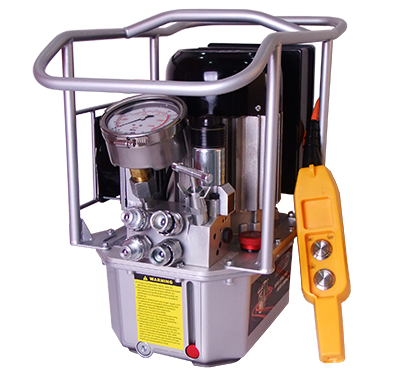

LP3 Series Hydraulic Torque Wrench Pump

LP3 Series Hydraulic Torque Wrench Pump

LP3 Series Multi- Port Power Pack is a three -stage power pack. The pressure relief valve is assembled in the high pressure port.

CONTACT US

Product characteristics

- Aluminum frame for easy carrying and protecting the elements
- Integrative electrical module . simple and high efficiency

Operation manual

Click download

Specifications

Download parameter table

Product selection form


LP3系列 液压扳手专用泵

Type LP3-2 LP3-4
Working pressure 70 MPa 70 MPa
Drive electric electric
Voltage 220 V / 50 Hz 220 V / 50 Hz
Power 1.1 KW 1.1 KW
Tank capacity 5.5 L

5.5 L

Flow rate 7-1.6-0.8 L/min 7-1.6-0.8 L/min
Oil cooler Yes Yes
Weight 25 Kg 27 Kg
Oil outputs 4×1/4" NPT 8×1/4" NPT
L×W×H (mm) 445×304×304×426 461×304×426

technical data


- Compact three-stage pump

- The Single valve block can be replaced by component FP-4,thereby allowing 2 or 4 Tools to be driven simultaneously

- Three stage induction motor driven so brushless

- Oil cooler,supporting continuous operation with steel frame

- 100mm diameter gauge,aluminium oil tank with oil level indicator

- Variable pressure adjustment between 1000~10000 bar

- Designed for continuous operation
