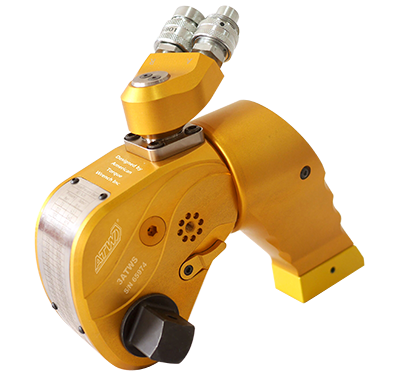

ATWS Series Square Drive Hydraulic Torque Wrench

The new locking coupler ensures the oil keep free access

Laser with the pressure-torque table enables convenient operation

Compact desigh with the raw material of advanced aluminum-titanium alloy,which intensifies the strength and toughness of the fuselage comprehensively

CONTACT US

Product characteristics

The 360° degree swivel is free to operation with no space limitation.
The reaction arm with 360° degree trimming style allows placing in any support point.

Operation manual

Click download

Specifications

Download parameter table

Product selection form

Series Selection Chart

TYPE 1ATWS 3ATWS 5ATWS 8ATWS 10ATWS 20ATWS

Torque

(N.m)

183~1837 455~4553 758~7580 1096~10952 1456~14560 2611~26000
Bolt size 16~36 22~48 27~56 30~64 36~72 42~90

Weight

Kg

2.5 5 6 11 15 26.5
L1 136 170 204 220 241 303
L2 186 244 285 313 350 450
H1 50 68 80 90 103 120
H2 72 105 132 142 155 189
H3 96 128 152 167 184 222
H4 131 206 230 244 261 300
R1 26 34 41 47 51 61
R2 99 136 150 175 179 255
Square Drive 3/4" 1" 1-1/2" 1-1/2" 1-1/2" 2-1/2"

technical data

●70Mpa Max working pressure and the accuracy keepwithin ±3%

●All together 6 models with the range from

188N.m to26000N.m,which covers the mostbolts size,and be themost comprehensiveavailable in the market.

●  The 360 degree swivel is free to operationwith no space limitation.

●  The square drive operate with the high intense socketand suitable with large range ofbolts.

●  360 degree adjustable reaction arm allowsplacing inany support point.

●  Compact design with the raw mterial of advanced aluminum-titanium alloy,high intense.

●The new locking coupler ensures the oilkeep free access.
