MP Series Electric Pump

MP Series Electric Pump

MP series electric pump adopts integrated way: by the oil pump, control valve, fuel tanks, pneumatic motor, cooler, such as instrument of a kind of independent complete hydraulic device, has small volume, light weight, simple structure, convenient operation, high working pressure, etc. The pump is high and low pressure oil pump, can obtain the larger output oil. When high pressure, the low pressure pump is automatically returned to oil by unloading overflow valve and can reduce the power consumption, and (A) the oil pressure can be adjusted by 70~ 700Bar.

CONTACT US

Product characteristics

double-speed designed , infinitely variable pressure adjustment between 0~700bar
modularity product , supply more than 200 kinds electric pump

Operation manual

Click download

Specifications

Download parameter table

Product selection form

MP Series Selection Chart:

Tank Capacity

Power

(KW)

Rated Pressure

(bar)

Output Flow

(L/min)

Source of Power

V/Hz

Maxing Operating

Pressure

(bar)

First stage Second stage First stage Second stage
4L 1.0 65
700
4 0.6

200V,50Hz&

380V,50Hz&

700

8L and above

1.1 5.5/7.2 0.8



technical data

Schematic iagram of valve group module

Type A:Manual Valve Type B:Manual Valve Type C:Solenoid Valve Type D:Solenoid Valve Type H:Solenoid Valve

(double-acting) (single-acting) (single-acting) (single-acting) (double-acting)

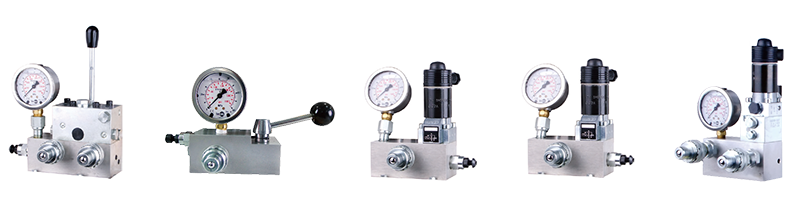

Universal valve block of MP series pump
